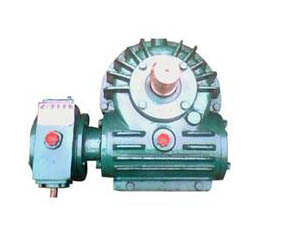

ZC1型雙級蝸桿及齒輪-蝸桿減速器（JB/T7008-1993）由兩類產品構成，其中ZC1型雙級蝸桿減速器是由速比及規格不同的兩級圓弧圓柱蝸桿傳動組成；齒輪—蝸桿減速器是由高速級為圓柱齒輪傳動、低速級為圓弧圓柱蝸桿傳動的兩級傳動組成。按低速級蝸桿置向不同可分為：蝸桿下置式、蝸桿側置式、蝸桿上置式三種結構形式。具有承載能力高、傳動效率高、傳動比大、結構緊湊等特點，主要適用于冶金、礦山、起重、運輸、化工、建筑、建材、輕工等行業。
|

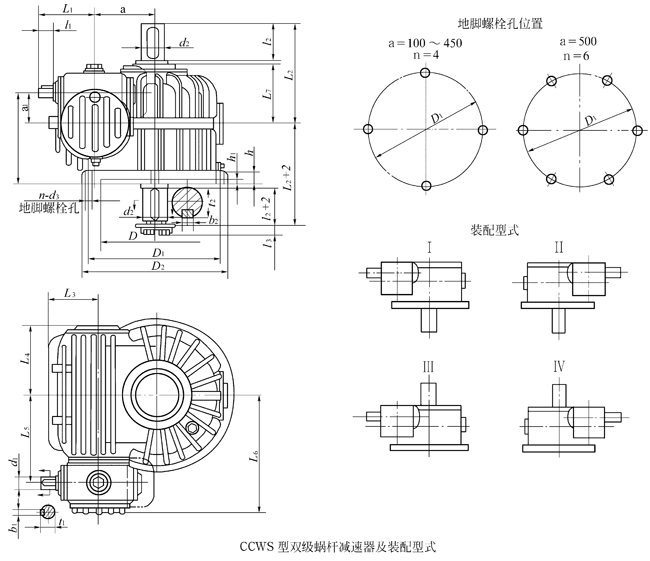

型號\尺寸
|
a
|
a1
|
D
|
D1
|
D2
|
L3
|
L4
|
L5
|
L6
|
L7
|
h
|
h1
|
i≤400
|
||||
|
d1
|
l1
|
b1
|
t1
|
L1
|
|||||||||||||
|
CCWS100
|
100
|
63
|
190
|
240
|
270
|
105
|
133
|
180
|
250
|
122
|
28
|
5
|
19j6
|
28
|
6
|
21.5
|
128
|
|
CCWS125
|
125
|
63
|
230
|
280
|
320
|
115
|
153
|
200
|
270
|
134
|
32
|
8
|
19j6
|
28
|
6
|
21.5
|
128
|
|
CCWS160
|
160
|
80
|
300
|
365
|
400
|
138
|
186
|
235
|
317
|
157
|
32
|
8
|
24j6
|
36
|
8
|
27
|
151
|
|
CCWS200
|
200
|
100
|
370
|
435
|
480
|
165
|
235
|
300
|
400
|
181
|
38
|
8
|
28j6
|
42
|
8
|
31
|
182
|
|
CCWS250
|
250
|
125
|
470
|
540
|
600
|
191
|
285
|
370
|
485
|
210
|
40
|
8
|
32k6
|
58
|
10
|
35
|
218
|
|
CCWS315
|
315
|
160
|
605
|
700
|
760
|
215
|
352
|
455
|
600
|
243
|
50
|
10
|
42k6
|
82
|
12
|
45
|
277
|
|
CCWS355
|
355
|
160
|
700
|
805
|
880
|
217
|
397
|
500
|
645
|
256
|
55
|
10
|
42k6
|
82
|
12
|
45
|
277
|
|
CCWS400
|
400
|
200
|
768
|
875
|
950
|
228
|
429
|
545
|
705
|
278
|
60
|
10
|
48k6
|
82
|
14
|
51.5
|
324
|
|
CCWU450
|
450
|
200
|
875
|
990
|
1070
|
275
|
484
|
597
|
757
|
300
|
65
|
10
|
48k6
|
82
|
14
|
51.5
|
324
|
|
CCWU500
|
500
|
250
|
1000
|
1100
|
1180
|
280
|
549
|
695
|
890
|
344
|
75
|
10
|
55m6
|
82
|
16
|
59
|
380
|
|
型號\尺寸
|
i≥500
|
d2
|
l2
|
b2
|
t2
|
L2
|
l3
|
H
|
d3
|
質量m/kg
|
||||
|
d1
|
l1
|
b1
|
t1
|
L1
|
||||||||||
|
CCWS100
|
19j6
|
28
|
6
|
21.5
|
128
|
48k6
|
82
|
14
|
51.5
|
212
|
11
|
195
|
14．5
|
80
|
|
CCWS125
|
19j6
|
28
|
6
|
21.5
|
128
|
55m6
|
82
|
16
|
59
|
222
|
14
|
195
|
14．5
|
105
|
|
CCWS160
|
24j6
|
36
|
8
|
27
|
151
|
65m6
|
105
|
18
|
69
|
270
|
15
|
240
|
18．5
|
165
|
|
CCWS200
|
24j6
|
36
|
8
|
27
|
176
|
80m6
|
130
|
22
|
85
|
325
|
17
|
290
|
18．5
|
305
|
|
CCWS250
|
28j6
|
42
|
8
|
31
|
202
|
100m6
|
165
|
28
|
106
|
385
|
17
|
337
|
24
|
460
|
|
CCWS315
|
32k6
|
58
|
10
|
35
|
253
|
120m6
|
165
|
32
|
127
|
420
|
17
|
410
|
28
|
830
|
|
CCWS355
|
32k6
|
58
|
10
|
35
|
253
|
130m6
|
200
|
32
|
137
|
470
|
17
|
425
|
35
|
1010
|
|
CCWS400
|
38k6
|
58
|
10
|
41
|
300
|
150m6
|
200
|
36
|
158
|
490
|
24
|
465
|
35
|
1350
|
|
CCWU450
|
38k6
|
58
|
10
|
41
|
300
|
170m6
|
240
|
40
|
179
|
560
|
24
|
515
|
42
|
1800
|
|
CCWU500
|
42k6
|
82
|
12
|
45
|
380
|
190m6
|
280
|
45
|
200
|
640
|
24
|
625
|
35
|
2440
|
